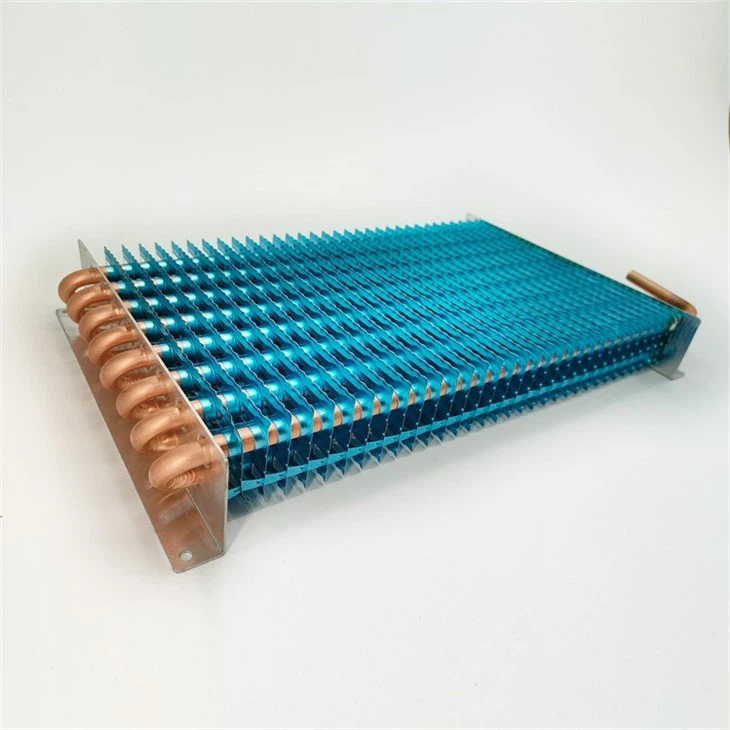

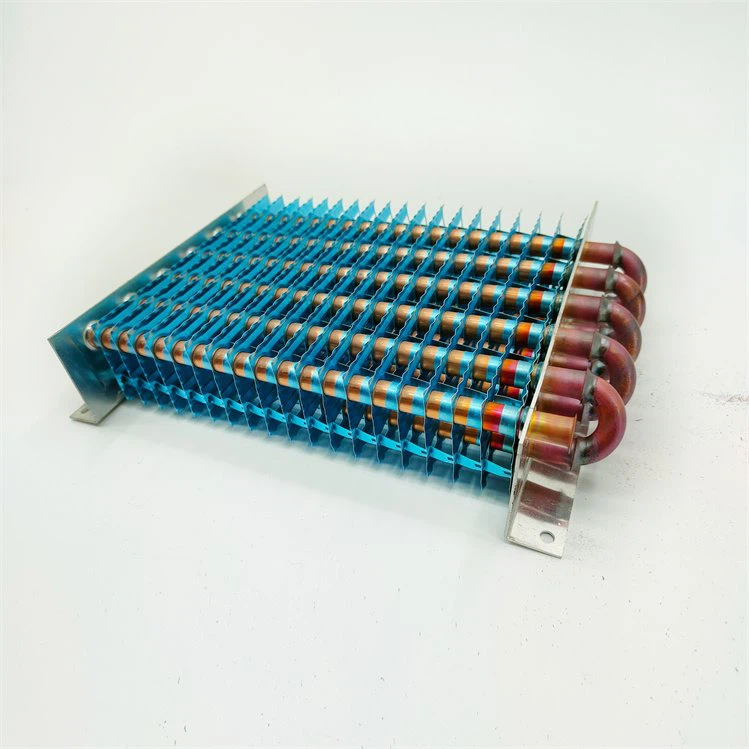

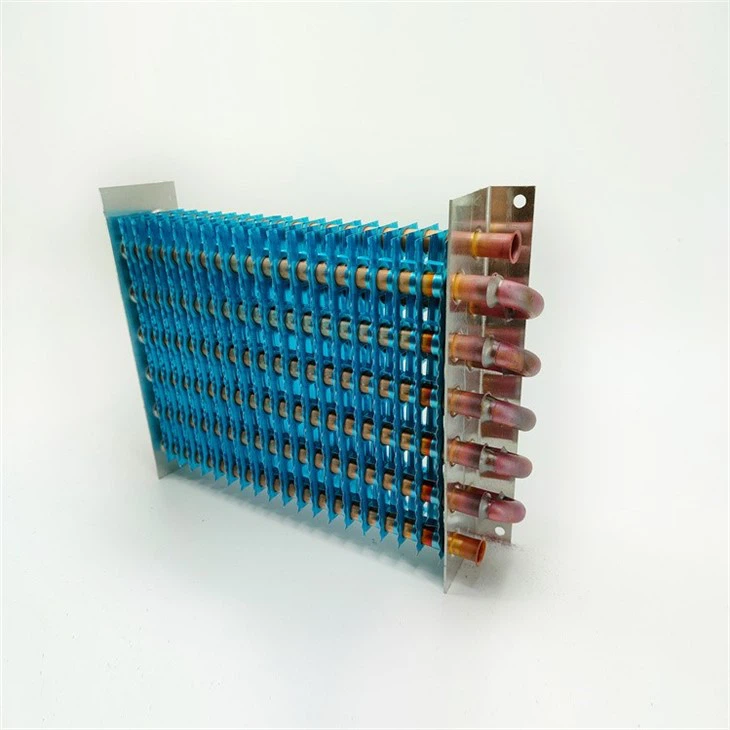

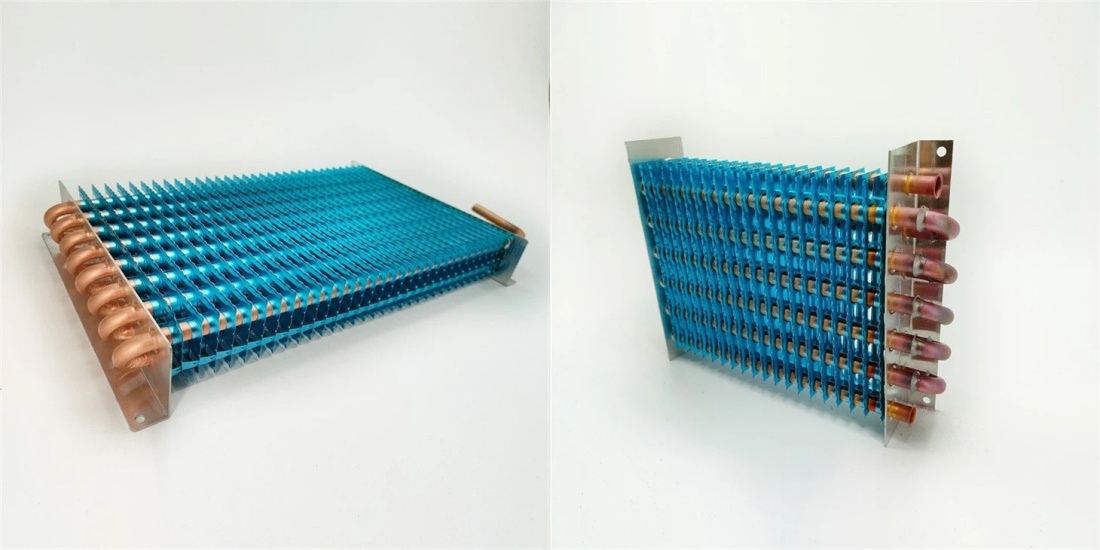

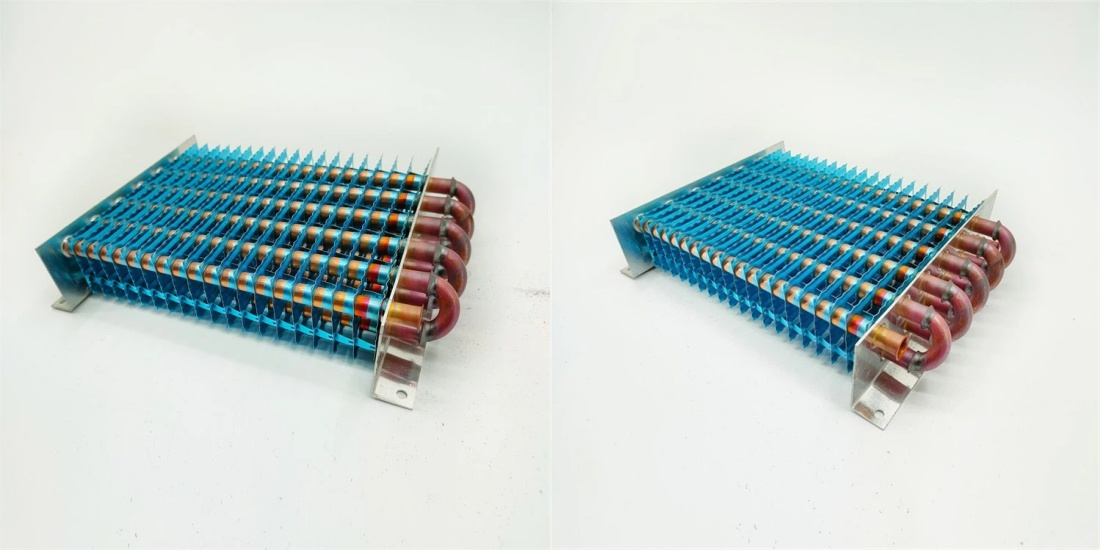

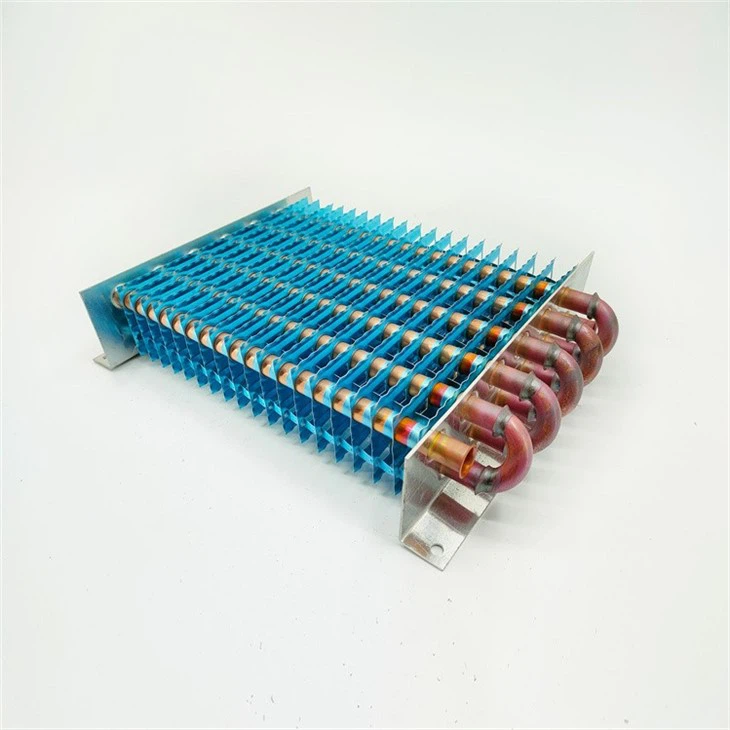

The condenser is a component of the refrigeration system and belongs to a type of heat exchanger. It can convert gas or vapor into liquid and transfer the heat in the tube to the air near the tube in a very fast manner.
1. Air cooled condenser can be used in air conditioner, cold room, freezer, refrigerator and other area.
2. Fin: flat or corrugated aluminum foils; hydrophilic or bare fin.
3. Tube: copper pipe
4. Φ7mm, φ7.94mm, φ9.52mm ,φ12.7mm of tube O.D. available
5. Customized service is available according to customer’s drawings to meet end user’s specified requirements.
6. Materials of fin and tube per customer’s need, it could be aluminum, copper or stainless steel
7. Leak test: 2.5Mpa water test
8. Producing process: tube bend, press fins, expand tube, welding, leak test, dry, inspect, pack.
Core Functions
- Efficient Heat Dissipation: Releases heat through refrigerant condensation, ensuring efficient system operation.
- Corrosion Resistance: Copper’s natural resistance to corrosion makes it suitable for various environmental conditions, extending service life.
- Heat Exchange Efficiency: Optimized design ensures efficient heat transfer, enhancing system performance.
Key Features
- High Thermal Conductivity: The combination of copper tubes and fins provides superior heat conduction for rapid heat dissipation.
- Corrosion Resistance: Copper resists corrosion from various chemicals, making it ideal for harsh environments.
- Compact Design: Space-saving structure for easy installation and maintenance.
- Versatility: Compatible with various refrigerants (e.g., R134a, R410A, R22).
Technical Specifications
- Material: Copper tubes + Copper fins
- Refrigerant Type: R134a, R410A, R22, etc.
- Operating Temperature Range: -50°C to +150°C
- Compatible Equipment: Air conditioners, refrigeration units, industrial cooling systems
Applications
- Residential Air Conditioning: Split air conditioners, window air conditioners, etc.
- Commercial Refrigeration: Supermarket display cases, cold storage rooms, chillers, etc.
- Industrial Cooling: Cooling systems in chemical, food processing, and pharmaceutical industries.
Product Benefits
- Energy Efficiency: Optimized design reduces energy consumption and operational costs.
- Reliability and Durability: High-quality copper ensures long-term stable operation.
- Adaptability to Various Environments: Corrosion resistance and high thermal conductivity make it suitable for complex environments.
- Easy Maintenance: Modular design simplifies cleaning and maintenance processes, reducing downtime.
Installation & Maintenance
- Installation: Detailed installation guidelines and professional technical support ensure proper setup and operation.
- Maintenance: Regular cleaning of fins and system checks ensure efficient operation and long lifespan.
