- Overview:

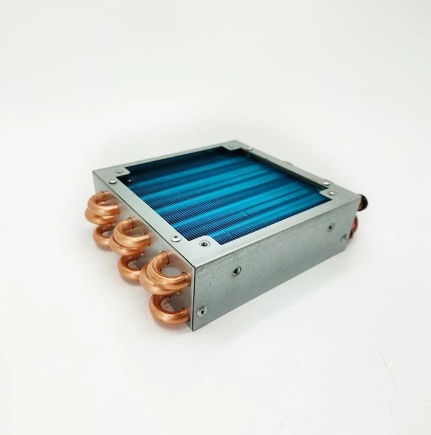

– The Fin Condenser Coil is a critical component in HVACR (Heating, Ventilation, Air Conditioning, and Refrigeration) systems, designed to optimize heat transfer efficiency. It plays a vital role in dissipating heat from the refrigerant to the surrounding environment, ensuring effective cooling or heating operations. This product is engineered for durability, performance, and compatibility with a wide range of systems.
- Key Features:
– High Thermal Efficiency: The finned tube design maximizes surface area, significantly improving heat exchange performance.
– Durable Construction: Made from high-quality materials such as copper tubes and aluminum fins, ensuring excellent corrosion resistance and long-term reliability.
– Compact and Lightweight: Space-saving design allows for easy integration into various systems, even in limited spaces.
– Versatile Compatibility: Suitable for use with multiple refrigerants, including R410A, R134a, and R22, making it adaptable to diverse applications.
– Low Maintenance: Simple design facilitates easy cleaning and maintenance, reducing downtime and operational costs.
– Customizable Options: Available in various sizes, fin densities, and configurations to meet specific system requirements.
- Technical Specifications:
– Material:
— Tubes: Copper (standard) or other materials upon request.
— Fins: Aluminum (standard) or coated fins for enhanced corrosion resistance.
– Fin Density: Adjustable based on application needs (typically 8-16 fins per inch).
– Tube Diameter: Customizable (commonly 3/8″, 1/2″, or 5/8″).
– Operating Pressure: Designed to withstand high-pressure environments, ensuring safety and reliability.
– Temperature Range: Suitable for a wide range of operating temperatures, from -20°C to 120°C (-4°F to 248°F).
– Certifications: Compliant with industry standards such as ISO, CE, and AHRI.
- Applications:
– Residential: Air conditioning units, heat pumps, and dehumidifiers.
– Commercial: Chillers, rooftop units, and refrigeration systems.
– Industrial: Cold storage, process cooling, and industrial heat pumps.
– Automotive: Vehicle air conditioning systems.
- Benefits:
– Enhanced Energy Efficiency: Improves system performance, reducing energy consumption and operational costs.
– Extended Equipment Lifespan: Durable materials and robust construction ensure long-lasting performance.
– Quiet Operation: Optimized design minimizes noise during operation.
– Environmentally Friendly: Compatible with eco-friendly refrigerants, supporting sustainable practices.
- Customization Options:
– Tailored dimensions and shapes to fit specific equipment designs.
– Special coatings for extreme environments (e.g., anti-corrosion, hydrophilic, or hydrophobic coatings).
– Custom fin patterns and tube layouts for specialized applications.
- Installation and Maintenance:
– Installation: Designed for easy integration into existing systems, with clear guidelines provided for seamless setup.
– Maintenance: Regular cleaning of fins and tubes is recommended to maintain optimal performance. Accessible design simplifies inspection and servicing.
- Why Choose Fin Condenser Coil?
– Proven reliability in diverse operating conditions.
– High-performance design backed by advanced engineering.
– Customizable solutions to meet unique project requirements.
– Cost-effective and energy-efficient, delivering long-term value.
- Ordering Information:
– Contact our sales team for pricing, lead times, and customization options. Provide details such as system type, refrigerant, dimensions, and any special requirements for a tailored solution.
- Support and Warranty:
– Comprehensive technical support available for installation and troubleshooting.
– Standard warranty coverage with extended options upon request.
The Fin Condenser Coil is the ideal choice for enhancing the efficiency and reliability of your HVACR systems. Contact us today to learn more or request a quote!
Certificate of honor
Factory actual shoot
Service process
Packaging transportation
We welcome domestic and foreign customers to visit our factory and negotiate business face to face. OEM products are available. We are glad to manufacture this product according to your designs, drawings and requirements.
Why Choose Us?
- Our company culture is centered around customer satisfaction and excellence in all that we do.
- We have been committed to improving the utilization rate of raw materials and reducing operating costs, thereby reducing the cost of our Refrigerator Fin Condenser Coil.
- Our team of engineers is dedicated to developing new and innovative products that push the boundaries of performance and efficiency.
- Our group has strong R&D and production capacity, as well as automated production lines with international advanced technology.
- Our customer service team is available 24/7 to answer any questions and provide support to our customers.
- Relying on a sound management system, we provide customers with a complete and reliable cooperation platform with excellent research and development capabilities, high-quality products and efficient services.
- Our commitment to quality and customer satisfaction is evident in everything we do, from product development to delivery and beyond.
- If you have any questions during use, our technicians speak fluent English and they will answer you online or by phone.
- We are committed to sustainable and responsible manufacturing practices, and our products are made with the environment in mind.
- We advocate a people-oriented corporate culture system, providing consumers with quality and inexpensive qualified products.
Specification of aluminum tube fin condenser
| Aluminum tube | Hole distance | Column distance | Flating height of fin |
| 7 | 21 | 12.7 | 1.6-2.4 |
| 7 | 21 | 18.2 | 1.5-4.5 |
| 9.52 | 25 | 21.65 | 1.8-5.7 |
Specification of copper tube fin evaporator&condenser
| No. | Copper tube | Hole distance | Column distance | Flating height of fin |
| 1 | 5 | 19.05 | 16 | 1.5-5 |
| 2 | 5 | 21 | 18.2 | 1.5-5 |
| 3 | 6 | 25 | 21.65 | 1.4-6 |
| 6.35 | 25 | 21.65 | 1.4-6 | |
| 4 | 7 | 25 | 21.65 | 1.4-6.5 |
| 5 | 7 | 21 | 12.7 | 1.4-3 |
| 6 | 7 | 21 | 18.2 | 1.4-6.5 |
| 7 | 7 | 21.8 | 20 | 1.5-4.5 |
| 8 | 7.94(5/16) | 25 | 21.65 | 1.4-5 |
| 9 | 9.52(3/8) | 25 | 21.65 | 4.0-10 |
| 10 | 9.52(3/8) | 25.4 | 15.88 | 1.4-3 |
| 11 | 9.52(3/8) | 25 | 12.5 | 1.8-5 |
| 9.52(3/8) | 25 | 25 | 1.4-4 | |
| 12 | 9.52(3/8) | 35 | 35 | 5.0-10 |
| 13 | 12(7/16) | 35 | 35 | 6-8.5 |
| 14 | 12.7(1/2) | 31.75 | 27.5 | 6-8.5 |
